Graco Reactor 2 E-XP2
Processing...

Graco Reactor 2 E-XP2

Code: 272012
(replaces #259028, 259036 & 259032)
$37,590.00
Low Inventory item. Shipments arrive daily. Place your order and we will contact you with availability.

Qty

272012 - R2 REACTOR E-XP2,15KW HEATERS, 2 G/MIN, MAXIMUM OPERATING PRESSURE 3500 PSI

TECHNICAL SPECIFICATIONS:

Max Tip Size: 01 mix chamber

Max GPM (LPM): 2 GPM

Max PSI (BAR): 3500 psi

Engine: Electric Driven

Noise Level: 87.3 db

Fluid Inlet: 3/4" Iso and Resin

Fluid Outlet: #5 JIC, #6 JIC

Hose Connection: #5 JIC, #6 JIC

Dimensions: 26.3"l x 15"w x 63"h x 345lbs

Generator Minimum Wattage: 30kw

Power Requirements: 1 phase 230 volt @ 100 amp, 3 phase 230 volt @ 62 amp

Cycles: 0.0203gal per cycle A&B

Make all your part and quantity selections, then click any "Add and Go to Cart" button when completed.

246995 COMPLETE TSL BOTTLE ASY

246995 - COMPLETE TSL BOTTLE ASY

Price: $189.50 ea.

261821 WIRE CONNECTOR, 6AWG (REF - 127) (PKG 2)

261821 - WIRE CONNECTOR, 6AWG (REF - 127) (PKG 2)

Price: $71.25 ea.

118444 SCREW MACH, SLOT HEX **

118444 - SCREW MACH, SLOT HEX **

Price: $2.95 ea.

113796 HEX HEAD FLANGED SCREW (REF - 41)

113796 - HEX HEAD FLANGED SCREW (REF - 41)

Price: $2.55 ea.

115836 FINGER GUARD **

115836 - FINGER GUARD **

Price: $5.30 ea.

24K207 FTS KIT, RTD, SINGLE HOSE

24K207 - FTS KIT, RTD, SINGLE HOSE

Price: $585.00 ea.



104765 PLUG PIPE HEADLESS ** (REF - 224)

104765 - PLUG PIPE HEADLESS ** (REF - 224)

Price: $13.60 ea.

24U320 KIT, ASSEMBLY, PAIR, STD, REACTOR

24U320 - KIT, ASSEMBLY, PAIR, STD, REACTOR

Price: $1,410.00 ea.

24U845 PRESSURE RELIEF TUBE KIT (PK/2)

24U845 - PRESSURE RELIEF TUBE KIT (PK/2)

Price: $256.50 ea.

191892 ELBOW FITTING, 1/8 NPT *** (REF - 119)

191892 - ELBOW FITTING, 1/8 NPT *** (REF - 119)

Price: $36.50 ea.

116746 FITTING, BARBED, PLATED (REF - 113)

116746 - FITTING, BARBED, PLATED (REF - 113)

Price: $10.00 ea.

16U530 R2 SURGE PROTECTOR

16U530 - R2 SURGE PROTECTOR

Price: $112.50 ea.



24U831 KIT,MODULE,GCA,MCM2200 RIO,R2-NON ELITE

24U831 - KIT,MODULE,GCA,MCM2200 RIO,R2-NON ELITE

Price: $995.00 ea.

206995 THROAT SEAL LIQUID, 1 QT (REF - 117)

206995 - THROAT SEAL LIQUID, 1 QT (REF - 117)

Price: $46.50 ea.

206994 8-OZ THROAT SEAL LIQUID

206994 - 8-OZ THROAT SEAL LIQUID

Price: $15.10 ea.

117502 5254A FITTING, A-REDUCER (REF - 106)

117502 - 5254A FITTING, A-REDUCER (REF - 106)

Price: $40.00 ea.

117677 5253A/296410 FITTING, R-REDUCER (REF - 107)

117677 - 5253A/296410 FITTING, R-REDUCER (REF - 107)

Price: $43.50 ea.

15V551 SHIELD MEMBRANE, ADM **

15V551 - SHIELD MEMBRANE, ADM **

Price: $17.40 ea.



24U854 MODULE KIT, GCA, ADM, REACTOR 2

24U854 - MODULE KIT, GCA, ADM, REACTOR 2

Price: $975.00 ea.

118459 1433A-3 FITTING, SWIVEL UNION (REF - 65f)

118459 - 1433A-3 FITTING, SWIVEL UNION (REF - 65f)

Price: $18.70 ea.

16W213 REACTOR LABEL, BRANDING

16W213 - REACTOR LABEL, BRANDING

Price: $11.20 ea.

113161 SCREW

113161 - SCREW

Price: $10.00 ea.

24U050 MOTOR KIT, BRUSHLESS, 2 HP (R2 E30)

24U050 - MOTOR KIT, BRUSHLESS, 2 HP (R2 E30)

Price: $2,590.00 ea.

257355 REPAIR KIT, BEARING HSG **

257355 - REPAIR KIT, BEARING HSG **

Price: $220.50 ea.



241279 REPLACEMENT KIT, CONN ROD E-30/E-XP2 (REF - 205)

241279 - REPLACEMENT KIT, CONN ROD E-30/E-XP2 (REF - 205)

Price: $344.00 ea.

245971 "B" DISPLACEMENT PUMP, .552/356.26 E-XP2 (REF - 206B)

245971 - "B" DISPLACEMENT PUMP, .552/356.26 E-XP2 (REF - 206B)

Price: $2,190.00 ea.

114672 WASHER, THRUST ** (REF - 208)

114672 - WASHER, THRUST ** (REF - 208)

Price: $2.95 ea.

183169 SPRING, RETAINING ** E-30/E-XP2 (REF - 210)

183169 - SPRING, RETAINING ** E-30/E-XP2 (REF - 210)

Price: $5.80 ea.

183210 PIN, STR, HDLS ** E-30/E-XP2(REF - 211)

183210 - PIN, STR, HDLS ** E-30/E-XP2(REF - 211)

Price: $28.60 ea.

114666 SOCKET HEAD CAP SCREW ** E-30/E-XP2(REF - 213)

114666 - SOCKET HEAD CAP SCREW ** E-30/E-XP2(REF - 213)

Price: $2.95 ea.



106115 WASHER LOCK SPRING (REF - 215)**

106115 - WASHER LOCK SPRING (REF - 215)**

Price: $5.80 ea.

246831 DISPLACEMENT PUMP W/LUBE, .552 (EXP-2/NEW PREDATOR) (REF - 206A)

246831 - DISPLACEMENT PUMP W/LUBE, .552 (EXP-2/NEW PREDATOR) (REF - 206A)

Price: $2,220.00 ea.

193031 RETAINING NUT ** E-XP2 (REF - 216)

193031 - RETAINING NUT ** E-XP2 (REF - 216)

Price: $66.75 ea.

116618 MAGNET ** (REF - 220)

116618 - MAGNET ** (REF - 220)

Price: $9.50 ea.

187437 TORQUE LABEL **

187437 - TORQUE LABEL **

Price: $7.60 ea.

192840 WARNING LABEL **

192840 - WARNING LABEL **

Price: $0.00 ea.



124132 O-RING (REF - 315)

124132 - O-RING (REF - 315)

Price: $2.90 ea.

15H305 PLUG FITTING, HH, 1-3/16 (REF - 313)

15H305 - PLUG FITTING, HH, 1-3/16 (REF - 313)

Price: $20.20 ea.

121309 FITTING, CONN, 3/4 SAE X 1/2 JIC (REF - 303)

121309 - FITTING, CONN, 3/4 SAE X 1/2 JIC (REF - 303)

Price: $6.80 ea.

15H306 ADAPTER THERMOCOUPLE (REF - 305)

15H306 - ADAPTER THERMOCOUPLE (REF - 305)

Price: $88.50 ea.

120336 PACKING O-RING (REF - 306)

120336 - PACKING O-RING (REF - 306)

Price: $12.10 ea.

16A110 HEATER ROD, IMMERSION, (2550W,230V) (REF - 307)

16A110 - HEATER ROD, IMMERSION, (2550W,230V) (REF - 307)

Price: $473.00 ea.



15B137 SWITCH, OVER TEMP. (REF - 308)

15B137 - SWITCH, OVER TEMP. (REF - 308)

Price: $66.25 ea.

15B135 MIXER IMMERSION HEATER (REF - 309)

15B135 - MIXER IMMERSION HEATER (REF - 309)

Price: $47.90 ea.

247824 VALVE, DRAIN, CARTRIDGE (REF - 802)

247824 - VALVE, DRAIN, CARTRIDGE (REF - 802)

Price: $375.00 ea.

158674 1701-13A-2 PACKING, O-RING (REF - 802a)

158674 - 1701-13A-2 PACKING, O-RING (REF - 802a)

Price: $13.20 ea.

247779 KIT, SEAL, SEAT, VALVE (REF - 802b)

247779 - KIT, SEAL, SEAT, VALVE (REF - 802b)

Price: $58.75 ea.

102814 6314-13/296816 GAUGE, PRESSURE, FLUID, 0-5000 PSI (REF - 803)***

102814 - 6314-13/296816 GAUGE, PRESSURE, FLUID, 0-5000 PSI (REF - 803)***

Price: $0.00 ea.



162453 FITTING, NIPPLE ** (REF - 804)

162453 - FITTING, NIPPLE ** (REF - 804)

Price: $23.60 ea.

15M669 SENSOR, PRESSURE, FLUID OUTLET

15M669 - SENSOR, PRESSURE, FLUID OUTLET

Price: $907.00 ea.

247788 HANDLE, LEFT, RED, ISO (REF - 806)

247788 - HANDLE, LEFT, RED, ISO (REF - 806)

Price: $39.70 ea.

247789 HANDLE, RIGHT, BLUE, RESIN (REF - 807)

247789 - HANDLE, RIGHT, BLUE, RESIN (REF - 807)

Price: $39.70 ea.

112309 NUT, HEX, JAM (REF - 808)**

112309 - NUT, HEX, JAM (REF - 808)**

Price: $5.40 ea.

117556 5380-4 FITTING, HOSE ELBOW (REF - 812)

117556 - 5380-4 FITTING, HOSE ELBOW (REF - 812)

Price: $16.50 ea.



121312 ELBOW FITTING, MA, 3/4 SAE X 1/2 JIC (REF - 814)

121312 - ELBOW FITTING, MA, 3/4 SAE X 1/2 JIC (REF - 814)

Price: $12.00 ea.

100840 FITTING, ELBOW, STREET (REF - 815)**

100840 - FITTING, ELBOW, STREET (REF - 815)**

Price: $18.50 ea.

111457 PACKING, O-RING (REF - 816)

111457 - PACKING, O-RING (REF - 816)

Price: $14.50 ea.

189285 CAUTION LABEL ** (REF - 48)

189285 - CAUTION LABEL ** (REF - 48)

Price: $0.00 ea.

150829 SPRING, COMPRESSION (REF - 818)**

150829 - SPRING, COMPRESSION (REF - 818)**

Price: $9.70 ea.

117557 5330-4 HOSE ELBOW (REF - 813)

117557 - 5330-4 HOSE ELBOW (REF - 813)

Price: $18.60 ea.



255149 DRAIN VALVE REPAIR KIT, ISO (REF - )

255149 - DRAIN VALVE REPAIR KIT, ISO (REF - )

Price: $407.00 ea.

255150 DRAIN VALVE REPAIR KIT, RESIN (REF - )

255150 - DRAIN VALVE REPAIR KIT, RESIN (REF - )

Price: $407.00 ea.

255148 DRAIN VALVE SET (REF - )

255148 - DRAIN VALVE SET (REF - )

Price: $782.00 ea.

24U855 KIT, TC MODULE,GCA,MZHP,REACTOR2

24U855 - KIT, TC MODULE,GCA,MZHP,REACTOR2

Price: $899.00 ea.

24R736 DISCONNECT SWITCH, DOOR MOUNTED

24R736 - DISCONNECT SWITCH, DOOR MOUNTED

Price: $459.00 ea.

123967 KNOB (REQUIRES NEW SWITCH) (REF - 34)

123967 - KNOB (REQUIRES NEW SWITCH) (REF - 34)

Price: $84.25 ea.



160327 FITTING UNION, ADAPTER **

160327 - FITTING UNION, ADAPTER **

Price: $94.75 ea.

247503 KIT, MANIFOLD, STRAINER, WYE

247503 - KIT, MANIFOLD, STRAINER, WYE

Price: $487.00 ea.

24U853 KIT, GAUGE, PRESS, FLUID

24U853 - KIT, GAUGE, PRESS, FLUID

Price: $119.50 ea.

-C20203 1436-120/299397 O-RING

-C20203 - 1436-120/299397 O-RING

Price: $8.15 ea.

16V879 FILTER CAP

16V879 - FILTER CAP

Price: $80.65 ea.

15D757 THERMOMETER HOUSING, VISC. HP

15D757 - THERMOMETER HOUSING, VISC. HP

Price: $79.75 ea.



109077 VALVE, BALL, 3/4"** (REF - 65e)

109077 - VALVE, BALL, 3/4"** (REF - 65e)

Price: $126.50 ea.

-C20487 HEX NIPPLE ** (REF - 65d)

-C20487 - HEX NIPPLE ** (REF - 65d)

Price: $23.20 ea.

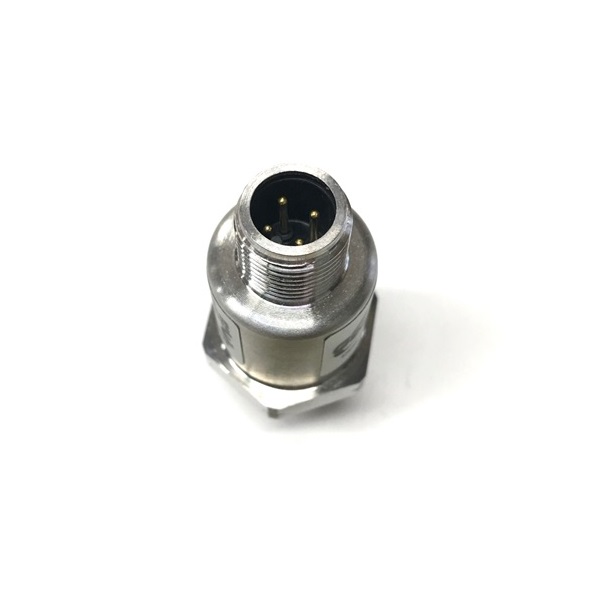

24U851 KIT, TRANSDUCER PRESS, TEMP

24U851 - KIT, TRANSDUCER PRESS, TEMP

Price: $630.00 ea.

255082 FILTER KIT, 80 MESH

255082 - FILTER KIT, 80 MESH

Price: $50.25 ea.

246055 14250A-PL/14250-PL WHIP, 1/4" X 10 FT. HEATED HOSE W/SCUFF GUARD (HIGH PRESSURE WHIP - 3500 PSI)

246055 - 14250A-PL/14250-PL WHIP, 1/4" X 10 FT. HEATED HOSE W/SCUFF GUARD (HIGH PRESSURE WHIP - 3500 PSI)

Price: $0.00 ea.

15C851 E-XP2/PREDATOR PUMP REPAIR KIT

15C851 - E-XP2/PREDATOR PUMP REPAIR KIT

Price: $338.00 ea.



246421 E-XP2/PREDATOR PUMP REPAIR KIT

246421 - E-XP2/PREDATOR PUMP REPAIR KIT

Price: $338.00 ea.

246963 WET-CUP CONVERSION KIT **NEEDS (2) 295662**

246963 - WET-CUP CONVERSION KIT **NEEDS (2) 295662**

Price: $218.50 ea.

24N450 KIT,CABLE,M84-PIN,MF, 50', RTD FTS

24N450 - KIT,CABLE,M84-PIN,MF, 50', RTD FTS

Price: $247.00 ea.
