Morse Industrial is the leader in the Tier IV compliant generator units!

Morse Tier IV 40/40 Combine Generator
Processing...

Morse Tier IV 40/40 Combine Generator

Code: 90714
$36,500.00
Low Inventory item. Shipments arrive daily. Place your order and we will contact you with availability.

Qty

90714 - MORSE 40/40 (40KW) TIER IV DIESEL GENERATOR (GCRS40-40-T4F230/3) (3 PHASE X 220V), CUMMINS ENGINE, MUFFLER, EXHAUST, BATTERY, INTEGRAL FUEL CELL & GAUGE. WITH MORSE 40CFM ROTARY SCREW COMPRESSOR INSTALLED ON GENERATOR.

TECHNICAL SPECIFICATIONS:

Engine: CUMMINS 3.8L Tier 4 final diesel engine, Diesel Exhaust Catalyst, No DEF Required

Includes: 40 CFM belt driven Rotary Screw, 40 gallon fuel tank, remote mount volt/amp/hertz panel

Hose Connection: 3/4" NPT AIR LINE CONNECTION

Dimensions: 44.50"W x 73.50"L x 57.00"H x 2070lbs

Power Requirements: 40kW Generator 220 Volt Rated at 134 amps Three Phase and 141 amps Single Phase

Cycles: 1800 RPM

Make all your part and quantity selections, then click any "Add and Go to Cart" button when completed.

MOR 80467 MORSE TIER 4 REPLACEMENT COMPRESSOR KIT, SCI8-T4, INCLUDES, HOSES, BELT, FILTERS, PULLEY, OIL AND INSTRUCTIONS.

MOR 80467 - MORSE TIER 4 REPLACEMENT COMPRESSOR KIT, SCI8-T4, INCLUDES, HOSES, BELT, FILTERS, PULLEY, OIL AND INSTRUCTIONS.

Price: $6,975.50 ea.

MORSE TIER IV COMPRESSOR KIT MORSE TIER IV COMPRESSOR KIT

MORSE TIER IV COMPRESSOR KIT - MORSE TIER IV COMPRESSOR KIT

Price: $415.87 ea.

MOR 5011 LUBRICANT, MORSE SCO 1000 5L, TIER 4

MOR 5011 - LUBRICANT, MORSE SCO 1000 5L, TIER 4

Price: $125.49 ea.

MOR 5012 ASSY, MORSE T4F OIL FILTER, TIER 4

MOR 5012 - ASSY, MORSE T4F OIL FILTER, TIER 4

Price: $81.87 ea.

MOR 5013 ASSY, MORSE T4F COALESCER, TIER 4

MOR 5013 - ASSY, MORSE T4F COALESCER, TIER 4

Price: $230.94 ea.

MOR 5014 ELEMENT, AIR FILTER SCI8D5, TIER 4

MOR 5014 - ELEMENT, AIR FILTER SCI8D5, TIER 4

Price: $36.45 ea.



MOR 5015 BELT, DOUBLE BANDED 2-3VX500, TIER 4

MOR 5015 - BELT, DOUBLE BANDED 2-3VX500, TIER 4

Price: $78.50 ea.

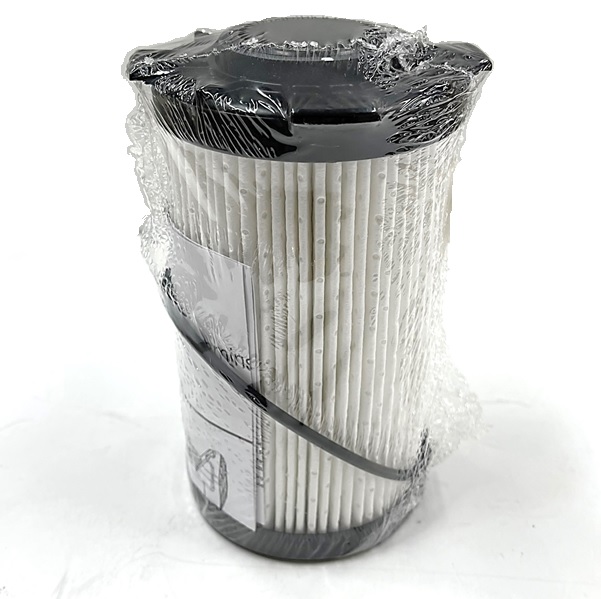

MOR FF266 MORSE ENGINE FUEL FILTER, TIER IV

MOR FF266 - MORSE ENGINE FUEL FILTER, TIER IV

Price: $61.05 ea.

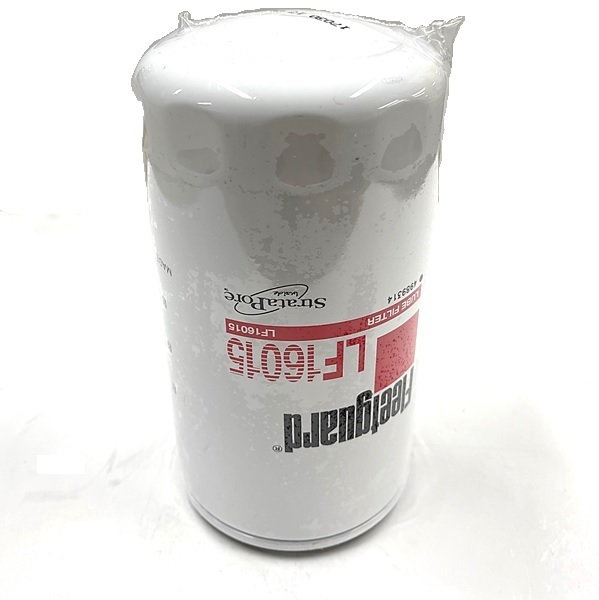

MOR LF16015 MORSE TIER IV ENGINE OIL FILTER

MOR LF16015 - MORSE TIER IV ENGINE OIL FILTER

Price: $54.23 ea.

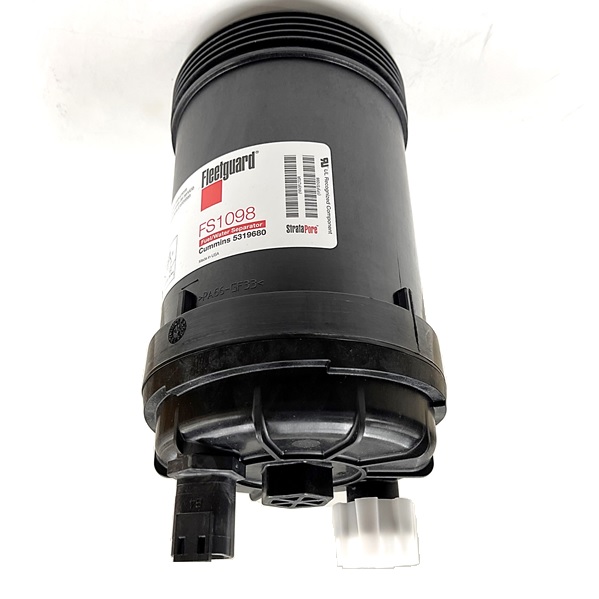

MOR FS1098 MORSE TIER IV ENGINE FUEL/WATER SEPERATOR FILTER

MOR FS1098 - MORSE TIER IV ENGINE FUEL/WATER SEPERATOR FILTER

Price: $115.50 ea.

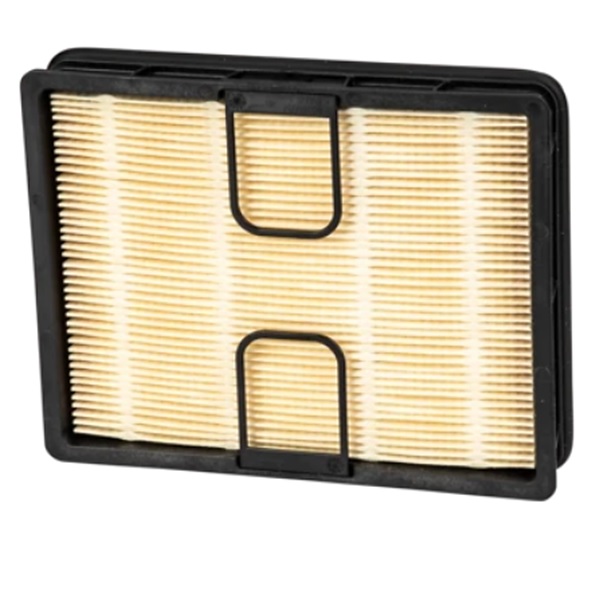

MOR AF55320 MORSE TIER IV ENGINE SECONDARY AIR FILTER

MOR AF55320 - MORSE TIER IV ENGINE SECONDARY AIR FILTER

Price: $165.80 ea.

MOR 5017 ELEMENT, AIR FILTER ENG 40KW T, TIER 4

MOR 5017 - ELEMENT, AIR FILTER ENG 40KW T, TIER 4

Price: $165.76 ea.



MOR 5018 MANUAL, CM3.8 T4F 40KW 40CFM GENSET, TIER 4

MOR 5018 - MANUAL, CM3.8 T4F 40KW 40CFM GENSET, TIER 4

Price: $41.20 ea.

MOR 5019 TANK, FUEL 40 GAL PLASTIC, TIER 4

MOR 5019 - TANK, FUEL 40 GAL PLASTIC, TIER 4

Price: $1,129.51 ea.

MOR 5016 KIT, SHAFT SEAL SCA8DR2, TIER 4

MOR 5016 - KIT, SHAFT SEAL SCA8DR2, TIER 4

Price: $193.54 ea.

MOR 5020 SOLENOID, 12VDC 100AMP POWER,TIER 4

MOR 5020 - SOLENOID, 12VDC 100AMP POWER,TIER 4

Price: $94.68 ea.

MOR 5021 FAN, 24" BLOWER CM 3.8L, TIER 4

MOR 5021 - FAN, 24" BLOWER CM 3.8L, TIER 4

Price: $387.54 ea.

MOR 5022 TRANSDUCER, 200 PSI 1/4NPT .5-4, TIER 4

MOR 5022 - TRANSDUCER, 200 PSI 1/4NPT .5-4, TIER 4

Price: $1,010.00 ea.



MOR 5023 GENERATOR, REPLACEMENT END ONLY 40KW SAE 3 3PH STUB, TIER 4

MOR 5023 - GENERATOR, REPLACEMENT END ONLY 40KW SAE 3 3PH STUB, TIER 4

Price: $8,503.00 ea.

MOR 5025 VALVE, SERVICE 1/2 VENTED PORT, TIER 4

MOR 5025 - VALVE, SERVICE 1/2 VENTED PORT, TIER 4

Price: $41.68 ea.

MOR 5026 VALVE, MINI BALL 1/2 NPT, TIER 4

MOR 5026 - VALVE, MINI BALL 1/2 NPT, TIER 4

Price: $20.33 ea.

MOR 5027 BUSHING, TAPER-LOCK #1108 25MM, TIER 4

MOR 5027 - BUSHING, TAPER-LOCK #1108 25MM, TIER 4

Price: $53.55 ea.

MOR 5028 PULLEY, 8.0 2GR 3V, TIER 4

MOR 5028 - PULLEY, 8.0 2GR 3V, TIER 4

Price: $209.27 ea.

MOR 5029 PULLEY, 2.8 2GR 3V TAPER-LOCK, TIER 4

MOR 5029 - PULLEY, 2.8 2GR 3V TAPER-LOCK, TIER 4

Price: $142.68 ea.



MOR 5030 SWITCH, PRESS NC 5LB, TIER 4

MOR 5030 - SWITCH, PRESS NC 5LB, TIER 4

Price: $111.32 ea.

MOR 5031 BOX, DIGITAL V/HZ/A METER 3 PH, TIER 4

MOR 5031 - BOX, DIGITAL V/HZ/A METER 3 PH, TIER 4

Price: $1,808.31 ea.

MOR 5033 VALVE, REGULATOR 1/4 3.8:1, TIER 4

MOR 5033 - VALVE, REGULATOR 1/4 3.8:1, TIER 4

Price: $153.95 ea.

MOR 5034 VALVE, BLOWDOWN 1/4 NC, TIER 4

MOR 5034 - VALVE, BLOWDOWN 1/4 NC, TIER 4

Price: $82.57 ea.

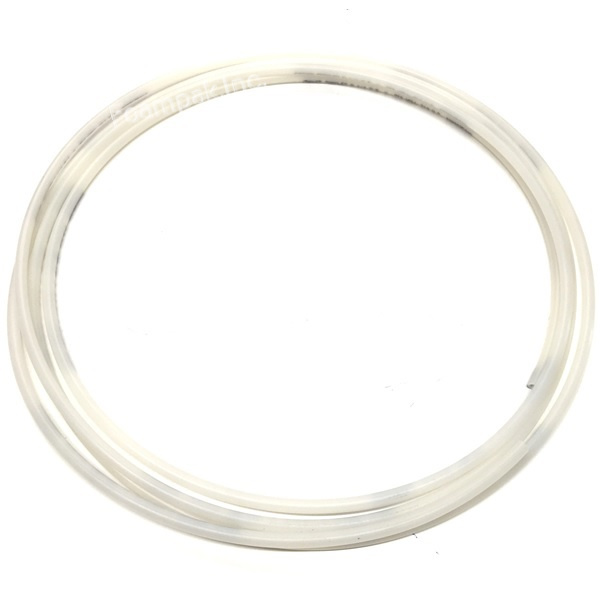

MOR 5035 TUBE, PARAFLEX 1/4 OD X .040, TIER 4 (PER FOOT)

MOR 5035 - TUBE, PARAFLEX 1/4 OD X .040, TIER 4 (PER FOOT)

Price: $4.02 ea.

MOR 5036 TUBE, DIESEL FUEL TYGON 3/8 ID, TIER 4

MOR 5036 - TUBE, DIESEL FUEL TYGON 3/8 ID, TIER 4

Price: $17.61 ea.



MOR 5037 RELAY, POWER WTHR PRF 12VDC, TIER 4

MOR 5037 - RELAY, POWER WTHR PRF 12VDC, TIER 4

Price: $17.83 ea.

MOR 5038 CONTROLLER, VEECAN HD LV, TIER 4

MOR 5038 - CONTROLLER, VEECAN HD LV, TIER 4

Price: $1,752.15 ea.

MOR 5039 GAUGE, AIR PRESS 0-200PSI 2", TIER 4

MOR 5039 - GAUGE, AIR PRESS 0-200PSI 2", TIER 4

Price: $82.97 ea.

MOR 5040 SWITCH, BATT ON/OFF 48V 300AMP, TIER 4

MOR 5040 - SWITCH, BATT ON/OFF 48V 300AMP, TIER 4

Price: $268.44 ea.

MOR 5041 SWITCH, ROCKER 20A 12V DPST 2, TIER 4

MOR 5041 - SWITCH, ROCKER 20A 12V DPST 2, TIER 4

Price: $25.37 ea.

MOR 5042 SOLENOID, 12VDC 200AMP POWER, TIER 4

MOR 5042 - SOLENOID, 12VDC 200AMP POWER, TIER 4

Price: $1,604.89 ea.



Morse Industrial Tier IV generator units meet the Tier IV requirements without the use of DEF fluid.
